Complete I/O Support for Manufacturing & Final Product Testing

Posted on

Overview

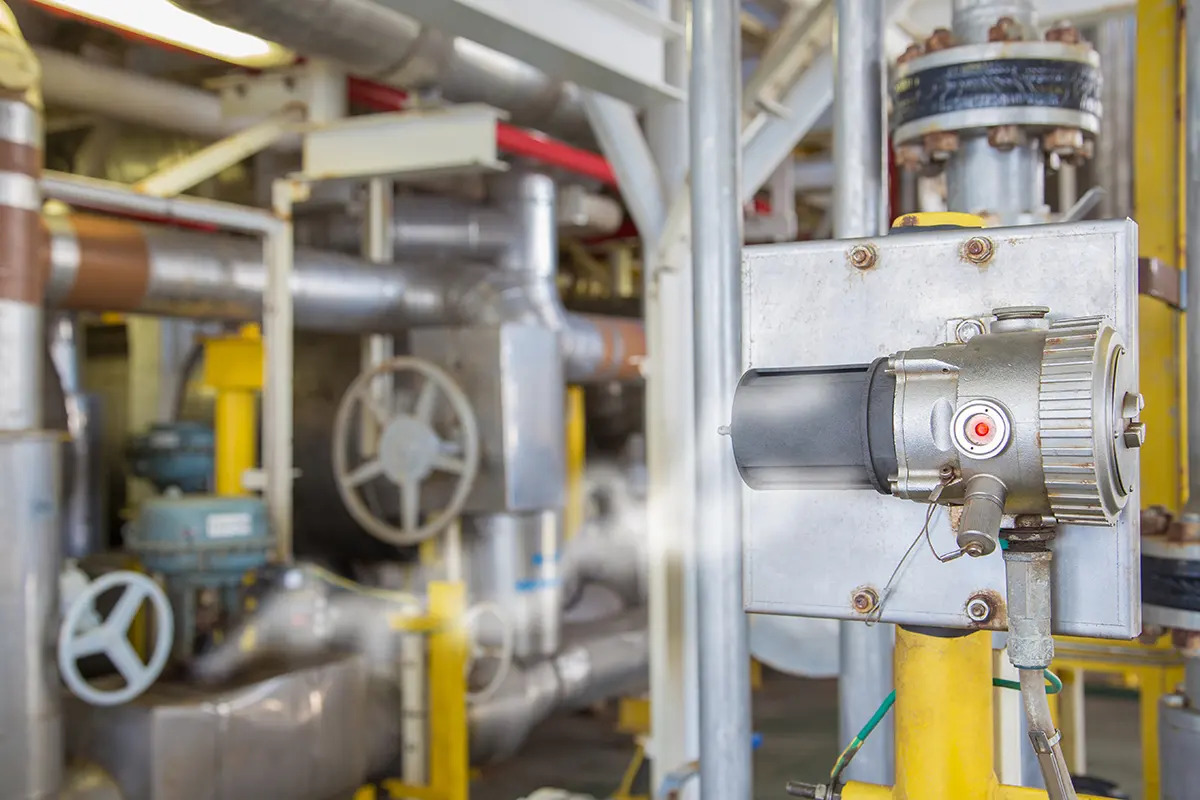

Sealevel collaborates with a global leader that develops and manufactures safety products for professionals and facilities. One of their systems is specifically designed for gas detection in fire safety, mining, and building manufacturing applications.

These systems require extensive manufacturing line testing as well as final product testing. While tests vary for different parts of the system, primary tests include performance, accuracy, and timing of the sensors.

Due to the critical performance requirements, the company demands consistent, high-reliability products that can be applied to a wide variety of use cases.

The Solution

After initially selecting and deploying SeaI/O data acquisition modules, this manufacturer standardized on Sealevel products for all internal test platforms. Analog inputs on the eI/O 170E, SeaI/O 470E, and SeaI/O 570E are used to test sensors by taking measurements. During test, the sensors are deployed in a controlled environment to determine if the readings are accurate. The digital outputs on the eI/O and SeaI/O DAQ devices are used to actuate the test cycles. The inputs then conduct status information back to the host.

The Result

Sealevel’s wide range of products and consistent production quality successfully support the entire test cycle, ensuring finished systems are fully and accurately tested before deployment.

Ethernet to 8 A/D, 2 Optically Isolated Dry Contact Inputs, 2 Solid-State Relay Outputs, Multifunction I/O AdaptereI/O 170E Multifunction I/O Adapter

  • Control and monitor eight 12-bit analog inputs, two optically isolated digital inputs and two solid-state relay outputs via any 10/100BaseT Ethernet connection
  • Eight single-ended or four differential A/D inputs that are software configurable for 0-5V, 0-10V, +/-5V, and +/-10V ranges



Ethernet Modbus TCP to 16 A/D, 2 D/A, 8 Open-Collector Outputs, 8 Isolated Inputs Multifunction ModuleSeaI/O 470E DAQ Module

  • Eight differential or sixteen single-ended 12-bit inputs and two 12-bit D/A output channels
  • A/D inputs are software selectable for 0-5V, 0-10V, +/-5V, and +/-10V ranges and each channel can be configured via hardware for measuring 4-20mA current loop
  • Eight optically isolated inputs rated for 5-30VDC and feature 300V external isolation
  • Eight open-collector outputs can sink up to 580mA



Ethernet Modbus TCP to 8 16-bit A/D, 8 Isolated Inputs, 8 Form C Relay Outputs Multifunction ModuleSeaI/O 570E DAQ Module

  • Eight single-ended 16-bit analog inputs, eight optically isolated inputs, and eight Form C relay outputs
  • A/D inputs are independently software-selectable for +/- 5V or +/- 15V ranges and feature high input impedance
  • Eight optically isolated inputs rated for 5-30VDC
  • Form C relays are configurable as normally-open or normally-closed
