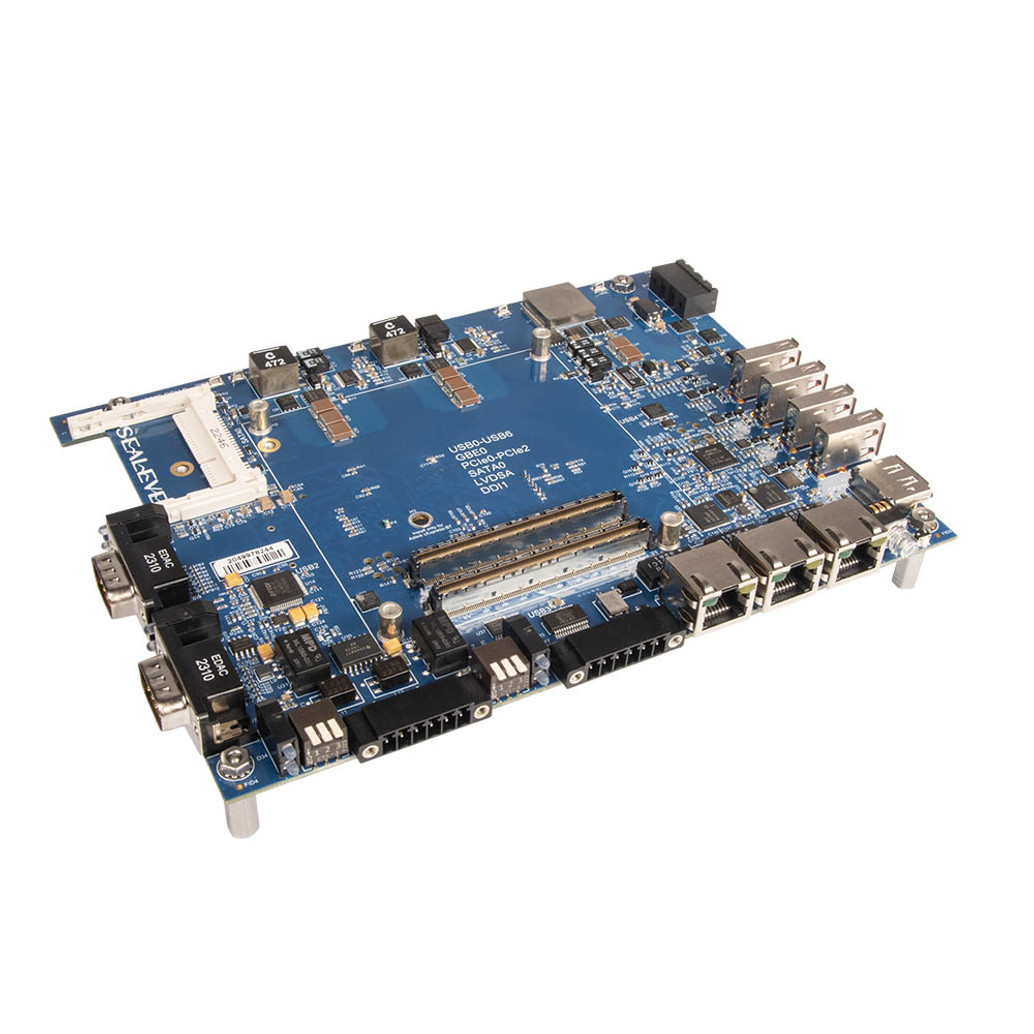

COM Express Compact Type 6 Carrier Board

$967.00

12010

  • COM Express Compact Type 6 Carrier Board
  • Touchscreen Connector
  • Onboard LED Indicators for Power and COM Activity
  • Real-time Clock
Adding to cart… The item has been added
Print Page

Product Details

The 12010 COM Express Compact Type 6 Carrier Board carrier board meets the needs of a wide variety of applications from systems integration to autonomous transportation with its diverse I/O mix. Compliant with the PICMG COM Express® specification, the 12010 provides a combination of ruggedness, reliability, and unmatched I/O from the industry leader in critical communications. With support for a variety of 95mm x 95mm Compact Modules, the 12010 offers the widest variety of I/O available yet in a standard carrier board from Sealevel – making it ideal for evaluation or volume integration in fielded installations.

Intense I/O & Expansion

Onboard I/O for the 12010 includes Ethernet, serial, USB, and digital interfaces, as well as an mPCIe expansion slot. The design for the 12010 COM Express Carrier Board is fully SWaP-C2 optimized, allowing for a condensed 7.75” x 5.75” footprint without sacrificing I/O. For a variety of applications, the following connectors are integrated: DisplayPort, power, touchscreen, LVDS, and backlight.

Powerful Processing & Performance

Natively, the 12010 COM Express Compact Type 6 Carrier Board supports the following modules from congatec: conga-TCA3 Bay Trail, conga-TCA7 Elkhart Lake, and conga-TC570 Tiger Lake. The 12010 carrier board is intentionally designed for compatibility with future industrial COM modules as technology evolves, ensuring a long lifecycle and future-proof performance. the 12010 Carrier Board features a wide operating temperature of -40°C to 60°C.

Secure Software for the Edge

Microsoft Windows 10 IoT ENT LTSC is factory-installed to provide the fastest time to market and flexibility for customer-specific software. Sealevel SeaCOM and SeaMAX hardware drivers are included to support system I/O. Serial application code samples assist with custom application development and complete support documentation expedites configuration.

The 12010 COM Express Compact Type 6 Carrier Board (Part #12000-00) is listed at $967 and currently shipping. Optional accessories include a module kit with a conga-TCA7 Elkhart Lake COM module, 8GB RAM, finned heatsink, and installation hardware (Part #106579-8GB-KT), as well as a recommended power supply (Part #TR152).

  • Specifications
  • Features

Specifications

  • Operating Temperature

    -40°C to 60°C (-40°F to 140°F)

  • Power Requirement

    10 - 30 VDC

  • Storage Temperature

    -40°C to -80°C (-40°F to 140°F)

  • COM Express Module Support

    congatec® conga-TCA3 Bay Trail, conga-TCA7 Elkhart Lake, conga-TCC570 Tiger Lake

  • Dimensions

    7.75" x 5.75" x 1.5"

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

  • Ethernet Ports

    (3) Gigabit Ethernet Ports

  • USB 2.0 Ports

    (4) USB 2.0 Ports

  • Expansion Slots

    (1) mPCIe Expansion Slot, (1) CFast Slot

  • Serial Ports

    (2) Isolated RS-422/485 Serial Ports, (2) Non-Isolated RS-232 3-Wire Ports (With modem controls)

  • Digital Outputs

    (4) Open Collector Outputs

  • Display Support

    (1) DisplayPort Connector

  • software_SeaCOM for Windows

    https://www.sealevel.com/software-seacom-windows

  • # of USB Ports

    4

  • CPU Type

    Intel Atom

  • # of Serial Ports

    4

  • # of Ethernet Ports

    3

  • Board only or Enclosed System

    Board only
