DIO 48.PC104 Kit: PC104 48 Channel TTL DIO; Portholes Kit DIO 48.PC104 Kit: PC104 48 Channel TTL DIO; Portholes Kit DIO 48.PC104 Kit: PC104 48 Channel TTL DIO; Portholes Kit

DIO 48.PC104 Kit: PC104 48 Channel TTL DIO; Portholes Kit

Call for price

  • 10K pull up resistors on each bit
  • +5V power and ground provided on connector
  • Right-angle connectors available for OEM opportunities, two industry standard 50-pin solid-state relay rack vertical header connectors standard
  • 48 channels of buffered TTL I/O
  • 8255 mode 0 compatible
  • Each 8-bit port individually configurable as input or output
  • Includes mounting plate with screw terminals and ribbon cables for installation in Relio enclosure
Print Page

Product Details

The 3701 PC/104 digital I/O interface module is designed around an ASIC emulating two 8255 chips, each providing 24 I/O lines. The board has a DIP switch for flexible I/O addressing, IRQ jumpers for interrupts and two sets of connectors for each port. A standard 50-pin solid state relay I/O module connector is provided.

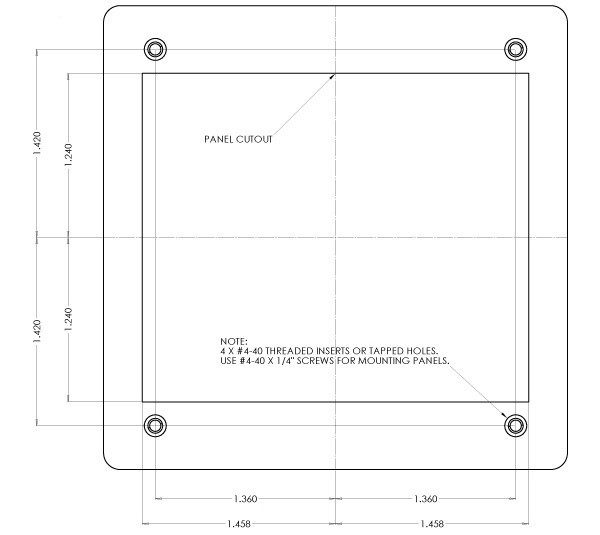

Includes 3701 PC/104 board, ribbon cables, and Portholes™ mounting plate with removable screw terminals for installation in an enclosure.

Note: This item has a minimum order quantity (MOQ) of 25 units. Please contact your sales representative with any questions.

  • Specifications
  • Features
  • Reviews (0)

Specifications

  • Host Interface(s)

    PC/104

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    48

  • Power Requirement

    +5V @ 794mA

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

Features

Reviews (0)

There are no reviews associated with this product.
