Mil-Std-1553 BC/RT/MT Front-End IP Core for FPGA

Call for Pricing

In Stock:

Suitable for any MIL-STD-1553 RT, BC, MT implementation
MIL-STD-1553 Intellectual Property for FPGAs and ASIC
Feature Summary:
Does not require CPU for management; no software required
Passed full validation testing by 3rd party
Very small FPGA area utilization
Supports any clock frequency, eliminates additional clock domains
Eliminates risks related to parts obsolescence
Provided with full verification environment
Modular architecture allowing flexible implementations
Based on vendor and technology independent VHDL code

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

MIL-STD-1553B Notice 2 Remote Terminal and Bus Controller, Extended Reliability, IP Core for FPGA Devices, Development License, Including 10 Prototype Units

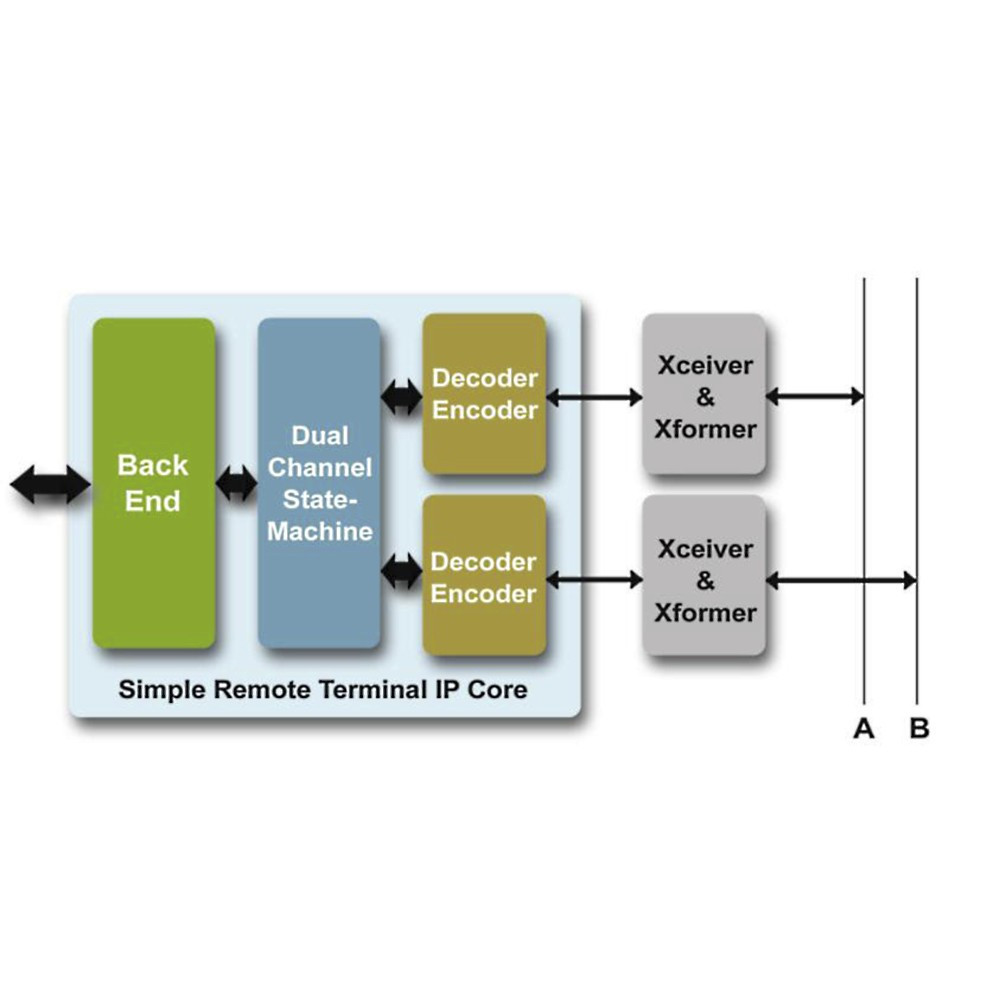

The BC/RT 1553ERL IP core is designed for MIL-STD-1553 applications requiring extreme reliability. The IP core is available in several configurations such as RT and BC, and several interfaces - Front End or DDC® Enhanced Mini-ACE® Compatible.

Back End Interface
The RT1553ERL can come in different interfaces:

Gate Count
A small gate count is required from an FPGA device even for complex applications, minimizing cost and the space required on the target board.

Manchester Decoder
The unique Manchester decoder can work with any even clock frequency from 12Mhz and up to reduce clock sources and clock domains onboard (reduces EMI/RFI). Advanced algorithms for filtering out noise and disturbances enable the core to operate in harsh environments.

Transceivers
The BC/RT 1553ERL IP core connects to any standard transceiver-transformer pair. The core was fully validated with a 3rd party dual transceiver.

RT Validation
The BC/RT 1553ERL IP core has been successfully implemented in a 3rd party FPGA, and has passed the full MIL-STD-1553B Notice 2 RT Validation test plan in an independent laboratory.

* DDC® and Mini-ACE® are registered trademarks of Data Device Corporation, Bohemia, NY, USA. There is no affiliation between Data Device Corporation and Sital Technology, Ltd or Sealevel Systems Inc. Sealevel is the licensed partner of Sital Technologies, Kfar-Saba, Israel, for distribution in the United States of Sital MIL-STD-1553 products and IP core products.
