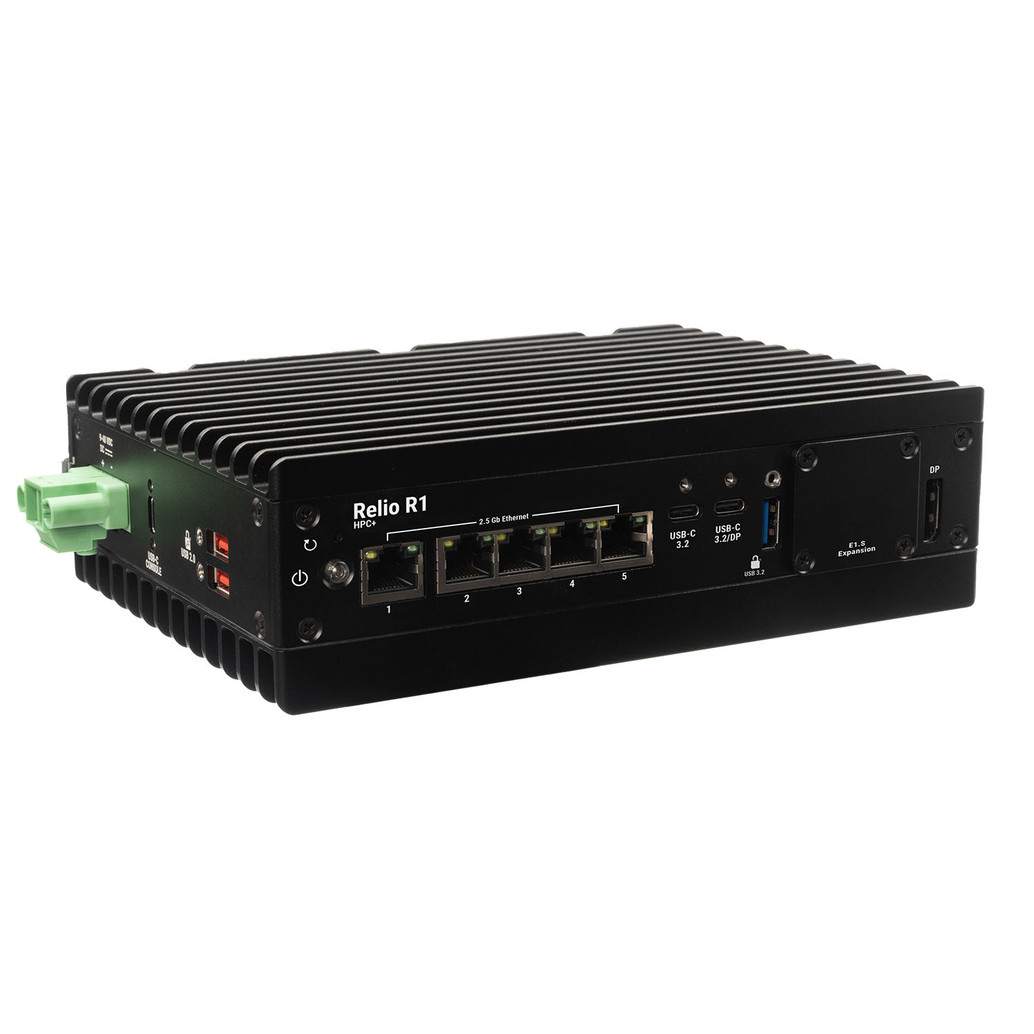

Relio R1 HPC+

The R1 HPC+ is the latest addition to the industry-leading Relio embedded computer line. The R1 HPC+ utilizes a COM-HPC architecture incorporates the newest generation of Intel® Core™ i5, Intel® Core™ i7 industrial processors and a modernized video interface. With versatile communication options like (5) 2.5Gbe Ethernet ports, Wi-Fi 6E, a total of 6 locking USB ports - (2) USB 3.1 Gen 2 Ports Type A ports, (1) USB 3.1 Gen 2 Type C port, (1) USB 4.0 type C with DP Alt mode and (2) USB 2.0 Type A ports. The R1 HPC+ also features (1) dedicated DisplayPort, along with the (1) DisplayPort via USB-C noted above.

The R1 HPC+ also features an expansion bay for an SSD drive or an AI accelerator:

• CF Express Drive (2 Lanes Gen 3) (SSD only)
• E1.S Drive (4 Lanes Gen 4)
  • This can be used as a removable SSD or AI accelerator.
• M Key NVMe (4 Lanes Gen 4)
  • This can be used as an internal SSD or AI accelerator.

Rugged Reliability

The R1 HPC+ has an extremely rugged, anodized aluminum enclosure combined with intentional thermal management for unmitigated performance under environmental extremes. The fanless, solid-state design, combined with locking SeaLATCH USB connectors, ensures shock and vibration tolerance as well as long-term reliability.

Configurable I/O & Future-Proof Architecture

Versatile communication comes standard with the R1 HPC+, including options like Wi-Fi 6E and 2.5 Gigabit Ethernet. With a robust and flexible I/O mix, this rugged industrial computer is capable of managing a variety of data inputs to interface with legacy systems and the most advanced peripherals, all from the edge. The embedded computer’s COM-HPC architecture allows for technology migration to easily change, and upgrade, the CPU functionality without a complete system redesign or replacement.

Software Flexibility & Fast Deployment

Inside the R1 HPC+, a PCIe slot provides lanes for solid-state storage ranging from 128GB to 4TB, and lanes to add an AI accelerator. The R1 HPC+ is compatible with Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux RHEL 8 (or later), and Linux Ubuntu 20.04 (or later). The system is also Windows 11 IoT-ready to provide maximum flexibility for evolving, customer-specific software applications.
