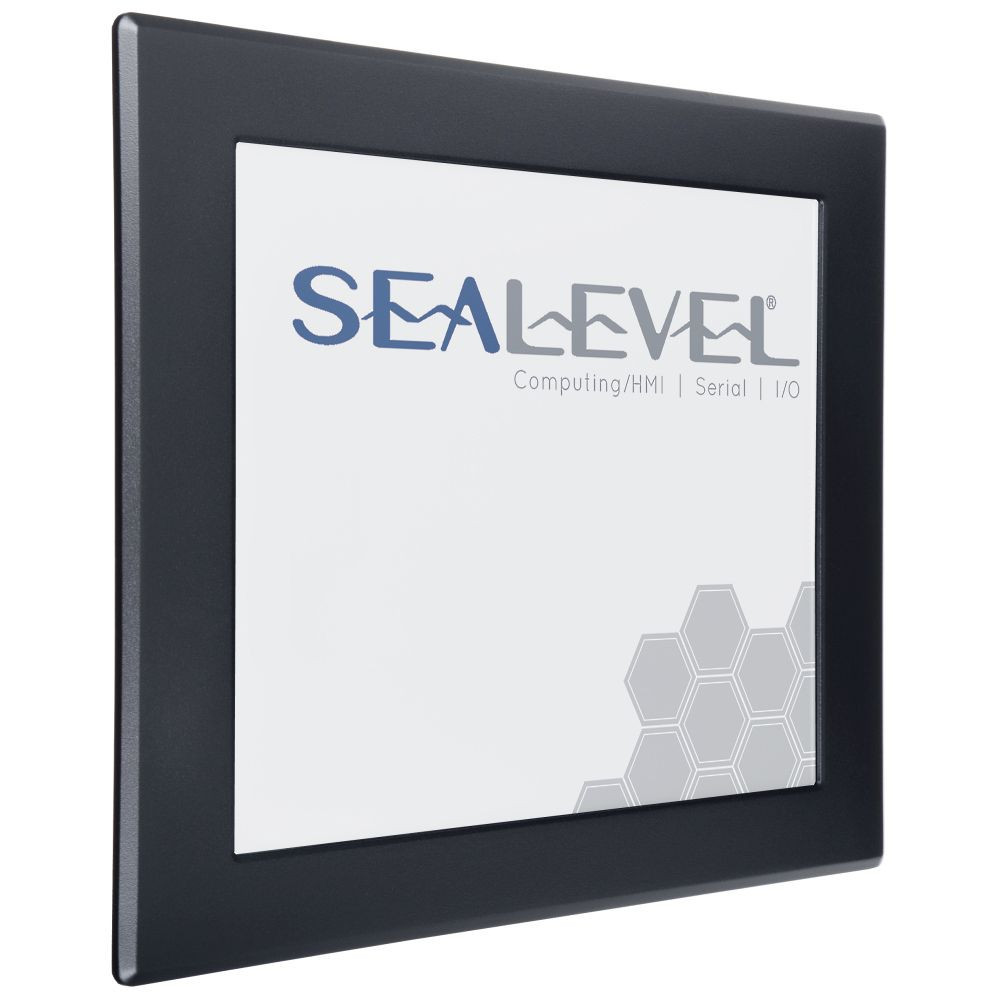

SeaPAC-1420 17" Touchscreen Flat Panel Computer for Industrial Environments

Call for price

S1420-17R

Print Page

Product Details

The SeaPAC-1420-17R combines Sealevel's Relio R1420 embedded computer with a bright 17” TFT LCD and resistive touchscreen to create a powerful, ultra-reliable flat-panel computer system. Powered by a 1.6GHz Intel Atom® N450 CPU, the system includes 2GB of RAM and offers a variety of standard I/O including dual Gigabit Ethernet, six USB 2.0 ports, four serial ports, 8-bit GPIO, and audio output. The HMI system is perfect for a variety of operator interface, data acquisition, and process control applications.

SeaPAC systems can operate from optional CompactFlash. An optional 2.5" SATA solid-state disk (SSD) can be integrated and preloaded with Microsoft Windows or Linux operating systems. Designed to operate over a wide 0°C to 50°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. The SeaPAC-1420-17R is powered from an included 100-240VAC to 12VDC external power supply.

Designed for panel mount installation, the front bezel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. The durable resistive touchscreen provides excellent accuracy and works with a stylus or gloved hand.

Local or remote I/O expansion is available using Sealevel SeaI/O modules. Choose from a variety of I/O configurations including optically isolated inputs, Reed and Form C relay outputs, TTL interfaces, A/D and D/A. The SeaPAC connects to SeaI/O modules via the system's RJ45 port and communicates using RS-485 Modbus RTU or Sealevel’s SeaMAX API software libraries.

The modular design allows for maximum up-time with easy field maintenance and upgrades of the Relio computer and I/O without removing the LCD assembly from the panel.

  • Specifications

Specifications

  • Operating Temperature

    0°C to 50°C (32°F to 122°F)

  • Power Requirement

    12VDC

  • Storage Temperature

    -10°C to 60°C (14°F to 140°F)

  • Family

    SeaPAC

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

  • Features Title

    System Features Overview

  • Features Info

    Bright 350 Nit 17″ TFT LCD

  • Features Info

    Durable resistive touchscreen with RS-232 controller

  • Features Info

    Designed for panel mount installation

  • Features Info

    NEMA4/IP65 Protection from sprayed liquid, humidity and dust

  • Features Info

    Silent solid-state design with no fans or other moving parts

  • Features Info

    System includes 1.6GHz Intel Atom N450 processor and 2GB RAM

  • Features Info

    Maximum 2GB DDR2 667MHz RAM, 200-pin SODIMM (2GB Installed)

  • Features Info

    Solid-state operation using optional CompactFlash or Solid-State Disk (SSD)

  • Features Info

    CompactFlash module and 2.5" drive bay are accessible without opening the enclosure

  • Features Info

    Integrated Intel Gen 3.5+ GFX Core graphics supports SXGA resolution up to 1400x1050 @ 75Hz (Native LCD resolution of 800x600 @ 60Hz)

  • Features Info

    RJ45 Modbus RTU RS-485 pass-through port (supports N-series SeaI/O expansion modules)

  • Features Info

    2-position removable screw terminal for system power

  • Features Info

    4-position removable screw terminal for 2-wire RS-485 interface

  • Features Info

    Includes desktop power supply (100-240VAC to 12VDC @ 4.0A 48W max) with attached terminal block for computer and barrel connector for flat panel monitor

  • Features Info

    Wide temperature operation from 0 - 50C ambient

  • Features Title

    Enclosure Bottom

  • Features Info

    Two 10/100/1000BaseT RJ45 (Intel 82567V, 82583V) Gigabit Ethernet ports with status LEDs

  • Features Info

    One DB9M serial port (COM1, RS-232)

  • Features Info

    Six USB 2.0 ports (Four use high-retention connectors)

  • Features Info

    8-bit general purpose I/O (GPIO) available on 10-position removable terminal block

  • Features Info

    One analog VGA DB15 connector

  • Features Info

    Type I/II CompactFlash bay accessible via removable plate

  • Features Info

    LED status indicators for power and disk activity

  • Features Info

    Recessed Reset switch

  • Features Title

    Enclosure Left Side

  • Features Info

    Three DB9M serial ports (COM2 = RS-232/422/485, COM3,4 = RS-232)

  • Features Info

    COM2 port accessible via DB9F (RS-232), RJ45 port (RS-422/485), or removable terminal blocks (RS-422/485)

  • Features Info

    Termination and biasing dipswitches for RS-485 port

  • Features Info

    Stereo audio out via standard 1/8" speaker connector

  • Features Title

    Enclosure Right Side

  • Features Info

    Supports 2.5" SATA Solid-State Disk (SSD), accessible via thumbscrews

  • Features Info

    System Monitoring and Management

  • Features Info

    Battery backup 3V/210mAH

  • Features Info

    Watchdog Timer with 255 level interval timer

  • Features Info

    Supports APM, ACPI power management

  • Features Title

    What's In the Box?

  • Features Info

    SeaPAC S1420-12R Touchscreen computer

  • Features Info

    Integrated video and touchscreen cables

  • Features Info

    External 12VDC power supply

  • Features Info

    Storage options available as accessories

  • CPU Type

    Intel Atom

  • # of USB Ports

    6

  • # of Serial Ports

    4

  • # of Ethernet Ports

    2

  • Touchscreen Size

    17″

  • Board only or Enclosed System

    Enclosed System
