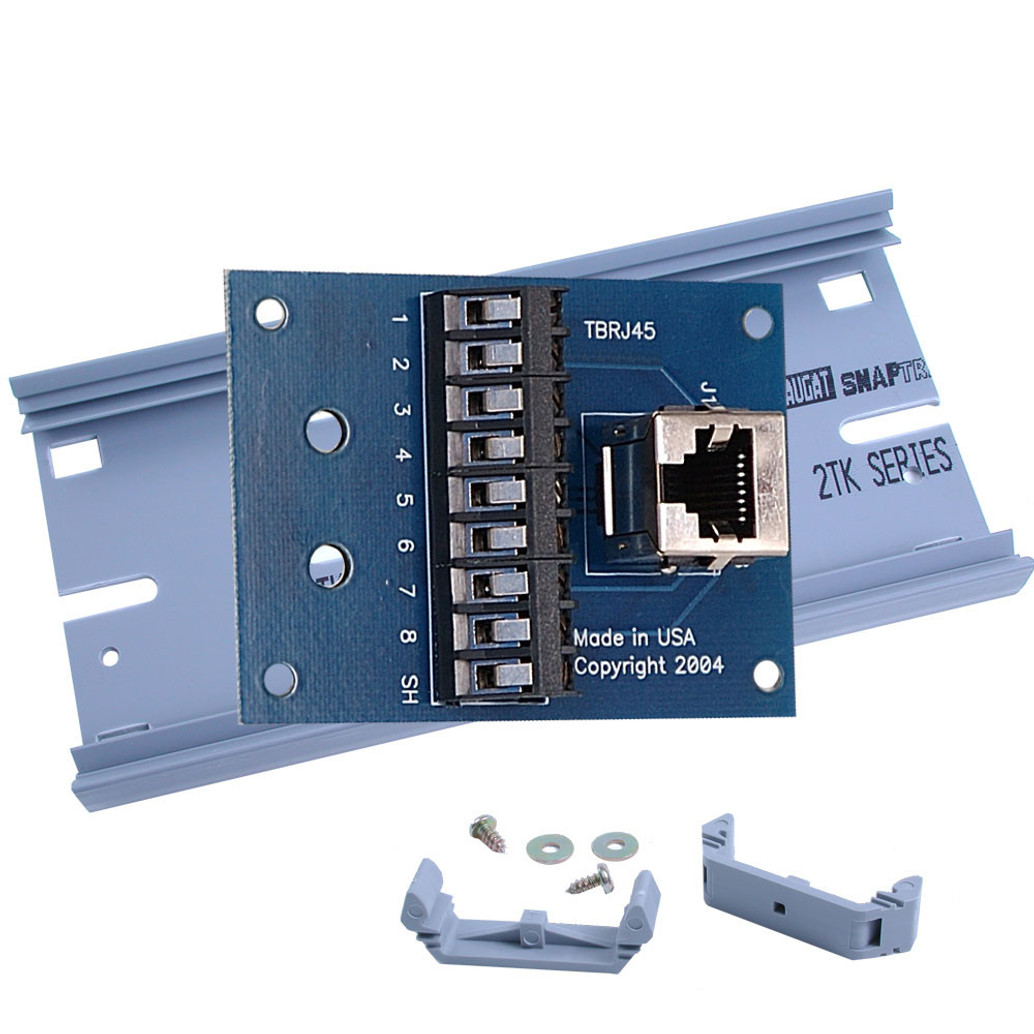

The TBRJ45-KT terminal block kit can be used to easily convert field wiring to an RJ45 connection. The terminal block has eight screw terminals that correspond to the eight RJ45 wires plus a ninth screw terminal for connecting a shield. Simply connect the individual conductors to the appropriate screw terminals and you are done. Designed with Sealevel SeaI/O RS-485 Modbus/RTU devices in mind, the TBRJ45 simplifies the conversion of remote RS-485 wiring to an RJ45 plug, allowing standard CAT5 cabling to be connected to Sealevel SeaI/O devices.
The TBRJ45-KT is also perfect for breaking CAT5 wiring out to screw terminals, which is especially useful for Telco, networking, automation, or other twisted pair wiring applications. For mounting considerations, a 6 piece of slotted Snap Track and two DIN-rail clips are provided, and two holes are located on the TBRJ45 for attaching strain relief to wiring connected to the screw terminals.
Dimensions
2.75" (L) x 2.0" (W)
TBRJ45 Provides interface/wiring flexibility Very handy little RJ45 to screw terminal field wiring adaptor. Well labeled and good quality workmanship. Only minor drawback is lack of insulation on bottom side of the unit. User needs to make certain to add proper electrical insulation with regard to bottom of unit. Recommend!
