Torvex - NVIDIA Jetson Orin AGX AI Computer Datasheet
100% Customer Satisfaction

If you are not completely satisfied with your Sealevel purchase you may return your products for a full refund, exchange, or credit within 30 days of the original purchase (RMA number required). Read full shipping and return policy here.

Read more

Product Details

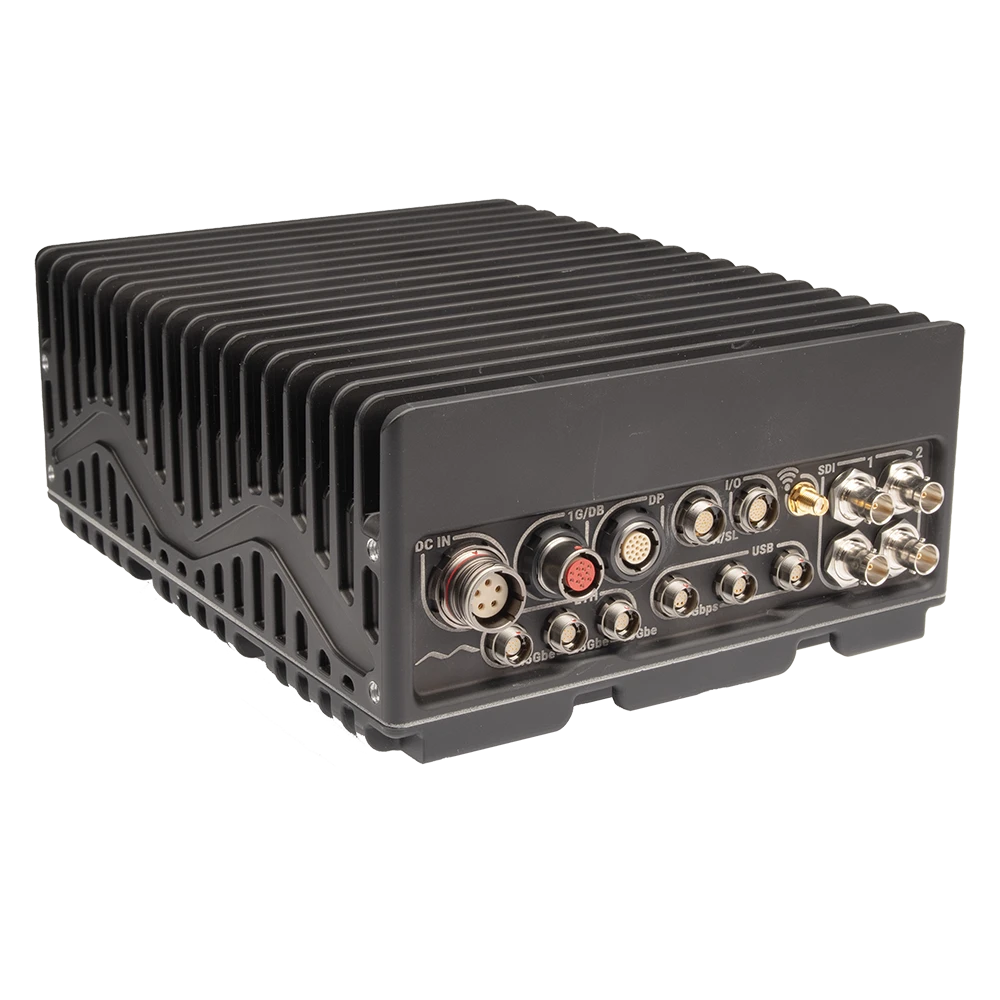

Sealevel System’s Torvex AI Computer is a powerful, rugged AI system built around the Nvidia Jetson Orin AGX Industrial module that is fully compatible with both AGX Orin 32GB and 64GB variants. With a compact 200mm x 250mm x 100mm footprint and a weight of approximately 7kg, this system is engineered for maximum reliability in extreme environments, supporting a wide 11- 36VDC input range and operating temperature from -40°C to 60°C, with -40°C to 71°C as a target for extended applications.

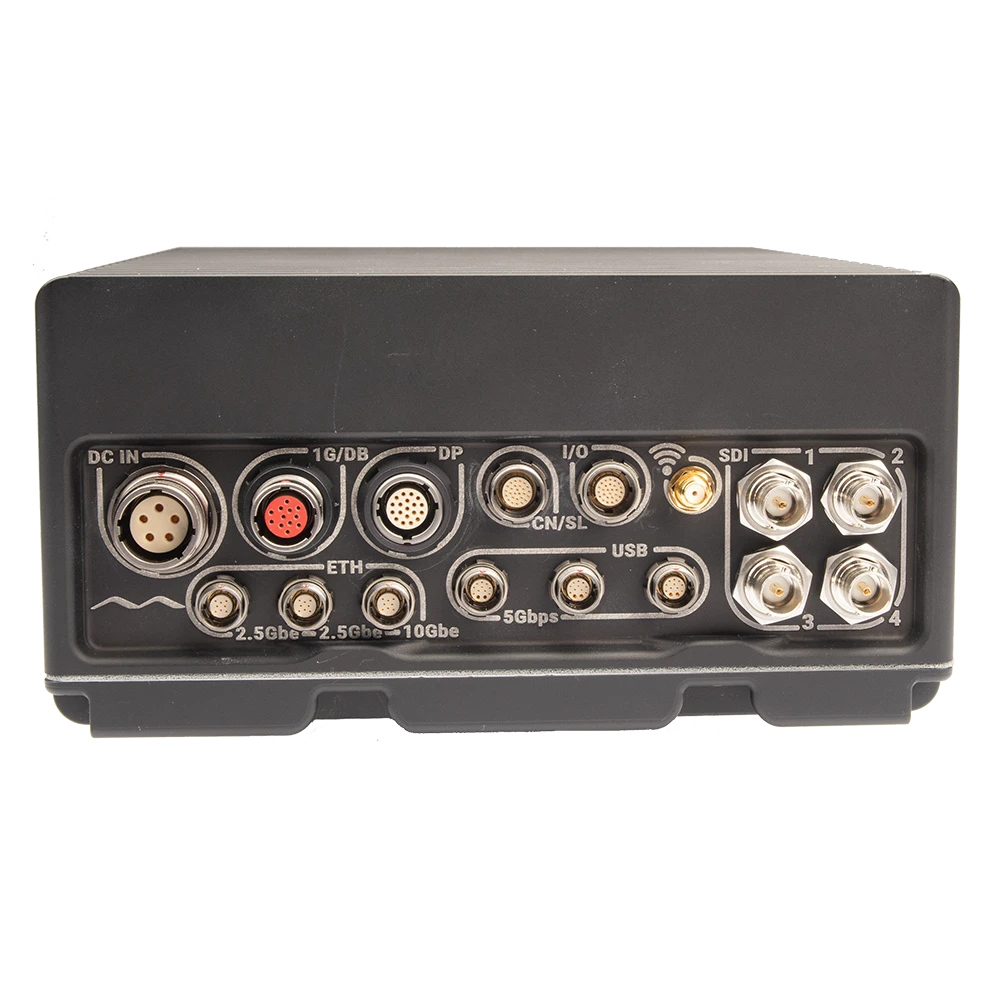

The Torvex AI Computer features high-performance I/O and expansion capabilities, including PCIe Gen 4 and Gen 3 M.2 slots for storage and SDI capture, multiple Ethernet ports (up to 10Gbe), and advanced wireless options with support for Wi-Fi 6E. This system offers extensive connectivity such as USB 3.1 Gen 2, isolated serial console, RS232/422/485, CAN bus, optically isolated inputs, and dry contact digital inputs, all housed in a rugged, IP67-rated enclosure with IP68-rated military connectors for uncompromised durability. It provides DisplayPort 1.4 video output, a galvanically isolated power supply, and accessible cable mounted controls for power, reset, and recovery.

The Torvex AI Computer system is designed for mission-critical deployments with compliance to MIL-STD-461G, MIL-STD-810G, DO-160G, MIL-STD-1275E, ISO IEC 60529:2013, FCC Class A, and CE standards, and supports Red Hat and Ubuntu 22.04 operating systems with a path to Ubuntu 24.04 and Jetpack 7, ensuring both performance and regulatory peace of mind for the most demanding applications.

  • Specifications
  • Software & Documentation

Specifications

  • Family

    Torvex

  • CPU Type

    Arm® Cortex®

  • Memory

    64GB 256-bit LPDDR5 204.8GB/s or 32GB 256-bit LPDDR5 204.8GB/s

  • CPU

    12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 (64GB Variant) or 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 (32GB Variant)

  • Display Support

    (1) DisplayPort

  • Serial Ports

    (1) Isolated Serial Console - USB Type B pinout, (2) RS232/RS422/RS485 Ports

  • Networking

    (2) 2.5GbE Ports, (1) 1GbE Port, (1) 10GbE Port, (1) M.2 E Key for wireless capability

  • USB 3.0 Ports

    (3) USB 3.1 Gen 2 Ports, Type A connectors

  • Power Requirement

    11-36VDC (TBD)

  • Operating Temperature

    -40°C to +60°C (-40°F to 140°F)

  • Storage Temperature

    -40°C to 85°C (-40°F to 185°F)

  • Humidity Range

    10 – 90% Relative Humidity, Non-Condensing

  • Dimensions

    8” (L) X 9.8” (W) X 4” (H)

  • Additional I/O

    (8) Digital inputs that are dry contact, switch-sensing inputs that are internally biased with 5VDC, (4) Optically isolated inputs with 1000VDC isolation to ground

  • CAN Bus

    (2) CAN Bus Ports

  • Ingress Protection (IP)

    IP67-Rated Enclosure and IP68-rated military round connectors

  • Expansion Slots

    (1) PCIe Gen 4 and (1) PCIe Gen 3 M.2 slots for storage and SDI capture

  • Certifications

    MIL-STD-461G, DO-160G, MIL-STD-810G, ISO IEC 60529:2013, MIL-STD-1275E, FCC Class A, CE

  • TOPS

    64GB Model: 275 TOPS; 32GB Model: 241 TOPS

  • GPU

    2048-core NVIDIA Ampere GPU with 64 Tensor Cores (64GB Variant) or 1792-core NVIDIA Ampere GPU with 56 Tensor Cores (32GB Variant)
