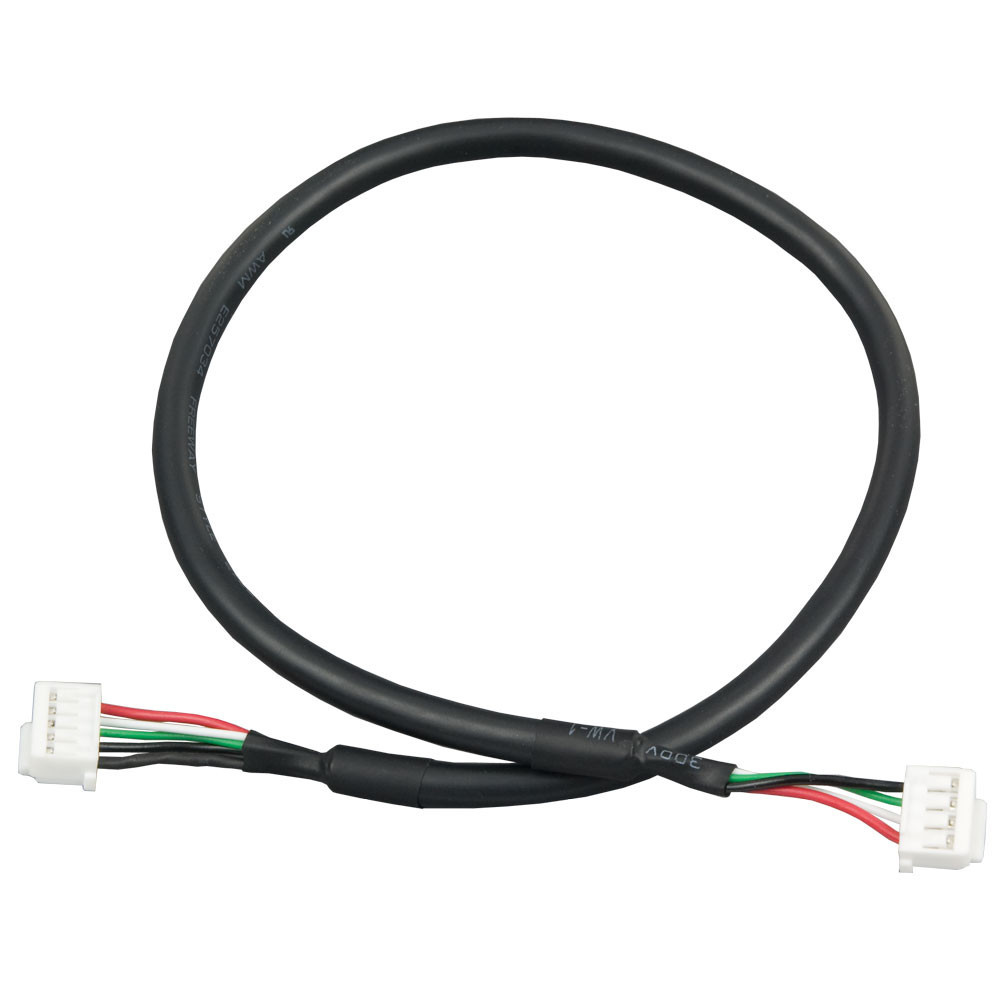

USB 5 pin latching to 4 pin latching; Rev B

$9.00

In Stock:

Common USB pin out on box header connector (Red V+, Green USB+, White USB-, Black GND, Black Shield)
1x4 Molex Item# 35507-0400 or equivalent
Cable has two 28 AWG Data (green/white) conductors and three 24 AWG Power/Shield (red/black) conductors
1x5 Molex Item# 35507-0500 or equivalent
Cable is 14 inches in length

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

The CA471 is compatible with Sealevel embedded USB 4-port hubs, items HUB4PH-OEM and HUB4PH-KT. One end of the cable has a 1x5 2mm Molex connector for connecting to the USB hub. The other end of the cable has a 1x4 2mm Molex connector compatible with Sealevel iPorthole, SeaDAC Lite OEM and embedded SeaLATCH USB products. The cable is 14 inches in length.

For the cable with 1x4 2mm Molex connector on both ends, order the CA382.
