7-Port USB 3.1 Gen 1 HUB
HUB7SSBA
HUB4SSBA
Product Details

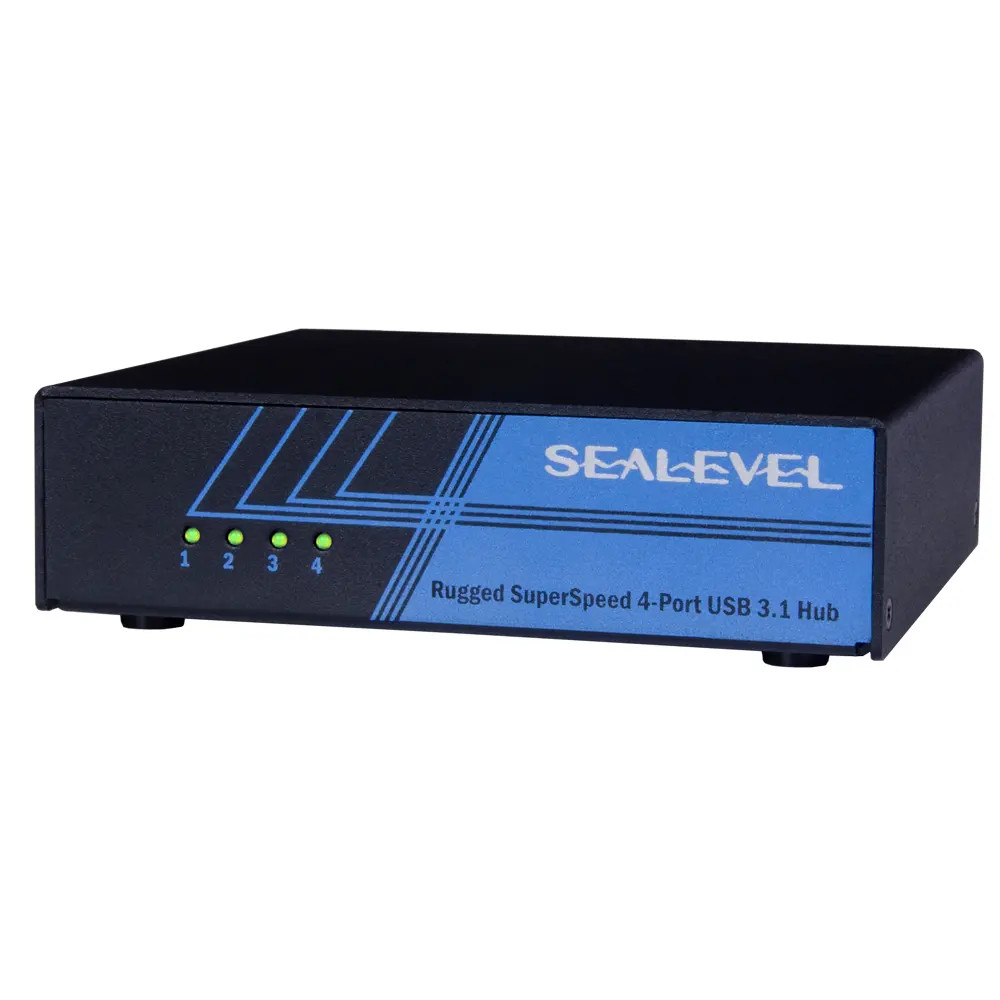

This 4-port hub features a rugged, industrial-grade, metal housing, robust ESD protections and is USB 3.1 compliant and backward compatible. The HUB4SSBA is designed to meet the advanced requirements for connecting multiple USB peripherals in extreme environments while achieving SuperSpeed operation.
The Rugged SuperSpeed USB 3.1 Hub checks every box for industrial use:
The HUB4SSBA ships with port 4 configured as a Charging Downstream Port (CDP) capable of supplying up to 2.4A of current to a connected device. The remaining three CDPs supply up to 1500 mA to each connected device. All CDPs are USB Battery Charging Specification BCv1.2 compliant, ideal for charging batteries or powering high-current USB peripherals. The Multiple Transaction Translator (MTT) design prevents speed limitations, enabling multiple high bandwidth devices to operate at SuperSpeed.
Each downstream port has a Bi-Color Status LED that indicates two types of connections:
The HUB4SSBA integrates Sealevel’s SeaLATCH locking USB 3.0 ports, which are fully compatible with standard USB cables. When used with the included USB cable with a SeaLATCH USB type B connector, the metal thumbscrew provides a secure connection to the device and prevents accidental cable disconnection. The hub’s four SeaLATCH USB 3.0 type A connectors can secure downstream USB peripherals to the hub in the same way. Find optional USB cables with SeaLATCH USB connectors under the Accessories, or use the standard, included USB cables.
Fully Supported in Microsoft Windows 8/10, and backward compatible with Microsoft Windows XP/7, and other USB-aware operating systems. The hub requires no separate drivers and is easy to install.
The HUB4SSBA features a rugged, metal enclosure and can be mounted utilizing the optional DIN Rail Mounting Kit (Item # DR106). Standard operating temperature range is -40°C to 85°C.
Host Interface(s)
USB
Max Data Distance
3 Meters (Standard Passive USB 3.0 Cables), 18 Meters (Active USB 3.0 Cable), 5 Meters (Standard Passive USB 2.0 Cables), 30 Meters (Active USB 2.0 Cable)
Max Data Rate
5G(Superspeed)
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Power Requirement
9-30VDC (24VDC Nominal via TR152), 5VDC Nominal via Upstream USB Host (for Bus-Powered Mode)
Storage Temperature
-40°C to 100°C (-40°F to 212°F)
USB Specification
3.1 Compliant ; 2.0 Compatible
Communications Chip
USB Hub (USB5734)
Dimensions
5.5" (L) x 5.125" (W) x 1.75" (H)
Humidity Range
10-90% Relative Humidity/Non-Condensing
