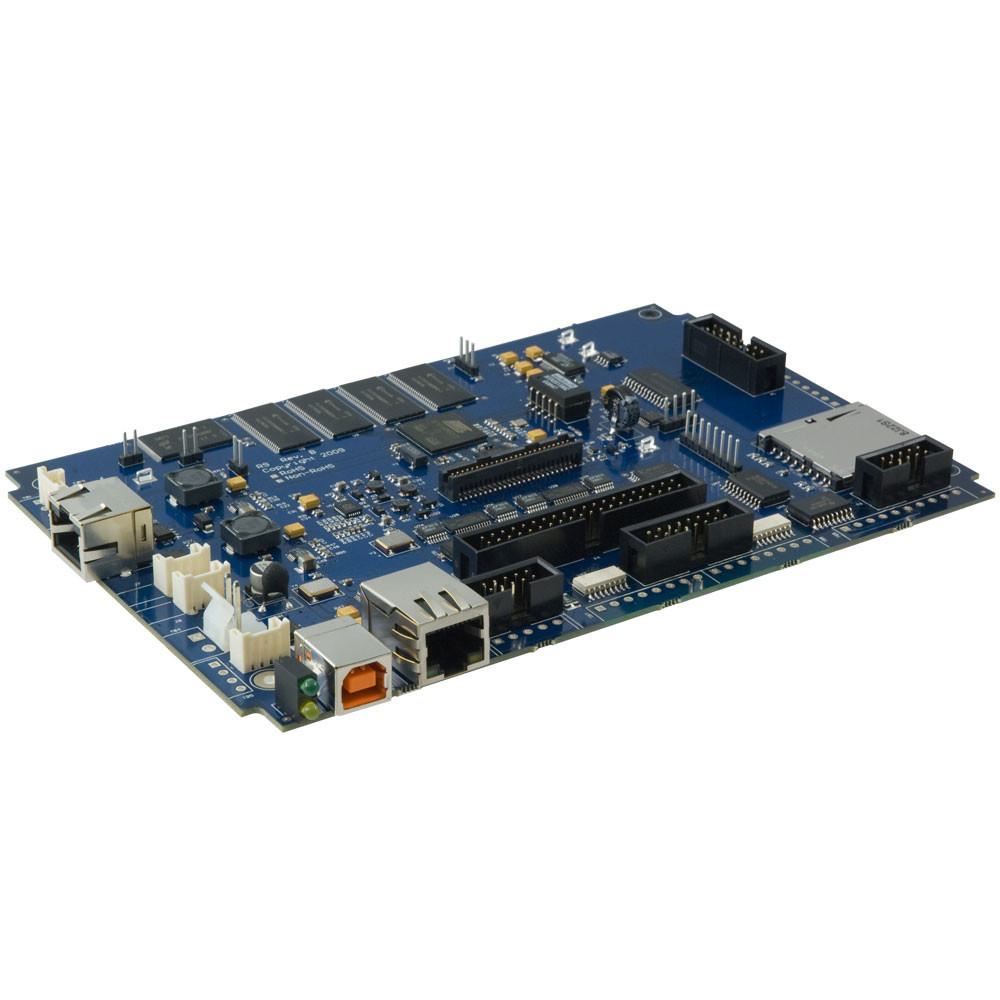

SBC-R9 Embedded RISC Computer; QuickStart Kit

The SBC-R9 delivers RISC computing power with a wealth of I/O features and uses the latest embedded software environment. The QuickStart Kit includes the necessary items to help get your idea to market fast.

The SBC-R9 is an application-ready platform for your next product design. The system is based on the 200MIPS Atmel AT91SAM9263 microcontroller boasting a 32-bit ARM instruction set for maximum performance. With up to 256MB RAM and 256MB Flash memory, the unmatched I/O features of the SBC-R9 extend the possible uses beyond traditional ARM applications. The SBC-R9 is the perfect platform for embedded applications requiring small size, wide operating temperature range, and flexible I/O connectivity.

Standard I/O includes Ethernet, serial, USB, CAN bus, digital and analog interface. System designers can directly drive TFT/STN LCDs from the onboard video controller, and the board also includes a resistive touchscreen controller, making it perfect for human-machine interface applications.

To provide the fastest time to market, the Windows CE 6.0 BSP binary and low-level drivers for system I/O are included. Additionally, the SBC-R9 software package is equipped with the Sealevel Talos I/O framework, which offers a high-level, object-oriented .NET Compact Framework (CF) device interface. This interface provides an I/O point abstraction layer with built-in support for the specific needs of analog and digital I/O such as gain control and debouncing.

For embedded Linux systems, Sealevel provides fully configurable components – cross-compilation toolchain, bootloader, kernel and root filesystem – using a customized BuildRoot with Sealevel patches, additional features and source code samples.

To simplify your application development, the QuickStart Kit includes the SBC-R9 and the accessories you need to get started.

• SBC-R9 – ARM9 Embedded RISC Single Board Computer
• TR134 – 100-240VAC to 12VDC @ 2.5A, Wall Mount Power Supply
• CA179 – USB Type A to USB Type B, Device Cable
• CA429 – R9 Serial Debug cable
• CA246 – CAT5 Patch Cable
• CA273 – 40-Pin IDC Ribbon Cable to (4) DB9M Connectors
• SD Card with CE runtime image, Talos .NET Framework, application samples, and documentation
• CD with Setup files and documentation
• Microsoft Windows CE 6.0 Core License

For applications with specialized hardware requirements, developers can use the SBC-R9 as a platform for application development while Sealevel designs a customized target system specific to the user’s application requirements. Click to download the SBC-R9 datasheet.
