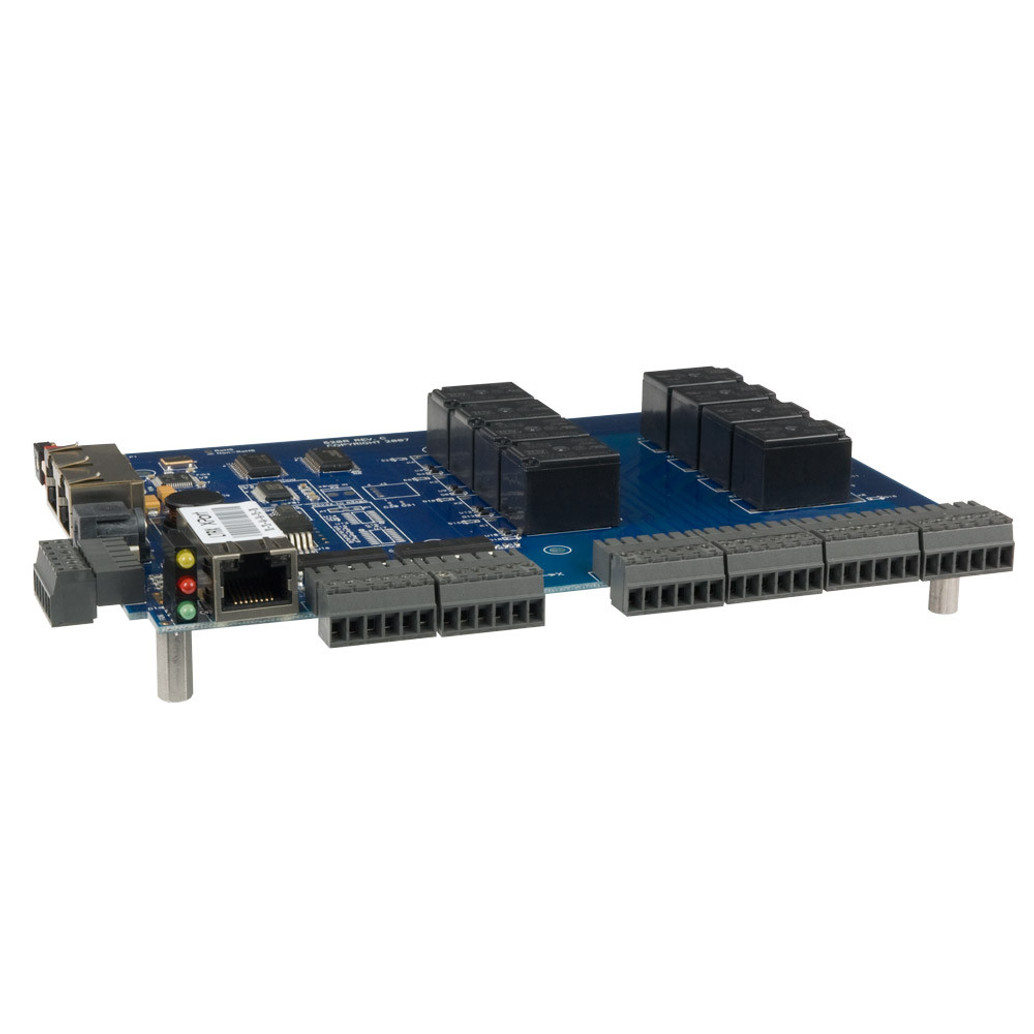

SeaI/O Ethernet Modbus TCP w/ 8 Iso In; 8 Form C High-Current Outputs

$324.00

In Stock:

520E-OEM

Removable screw terminals simplify field wiring
10/100BaseT Ethernet Modbus TCP interface
8 optically isolated inputs
8 SPDT high-current Form C relays
Sealevel SeaMAX software supports Microsoft Windows and Linux operating systems
Includes four 3/4 metal standoffs with nuts
Input power via terminal block or modular connector

Adding to cart… The item has been added

SeaI/O Ethernet Modbus TCP w/ 8 Iso In; 8 Form C High-Current Outputs

$324.00

Satisfaction Guaranteed • 30 Day MoneyBack

Software & Documentation

SeaI/O OEM Modules User Manual

Shipping & Returns

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean lectus neque, commodo non ante tincidunt, vestibulum auctor enim. Nulla euismod porttitor maximus. Nunc non dolor tempor, fermentum sem a, fringilla tortor. Cras accumsan sit amet eros congue fringilla. Donec diam magna, dictum eget bibendum vitae, consectetur a mauris.

Product Details

The SeaI/O-520E-OEM provides eight optically isolated inputs and eight high-current Form c relay outputs. Inputs can range from 5-30VDC and optical isolation protects the computer and other sensitive equipment from voltage transients and ground loops that are common in industrial environments. The high-current Form C relays can switch up to 6A loads at 250VAC and up to 5A at 30VDC. Form C relays can be wired for either normally open or normally closed operation. The SeaI/O-520E-OEM is powered from your 9-30VDC source, or select from a variety of Sealevel power supply options.

Communicate with the SeaI/O-520E-OEM using industry-standard Modbus TCP protocol or use the Sealevel SeaMAX API software libraries from your application program. Sealevel’s SeaMAX software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems.

Expand your I/O network with SeaI/O N-series products. SeaI/O OEM boards are available with Reed and Form C relays, optically isolated inputs, TTL interfaces, A/D and D/A functionality. Up to 246 additional expansion modules can be added using convenient pass-through connectors.

Get a jump start on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
