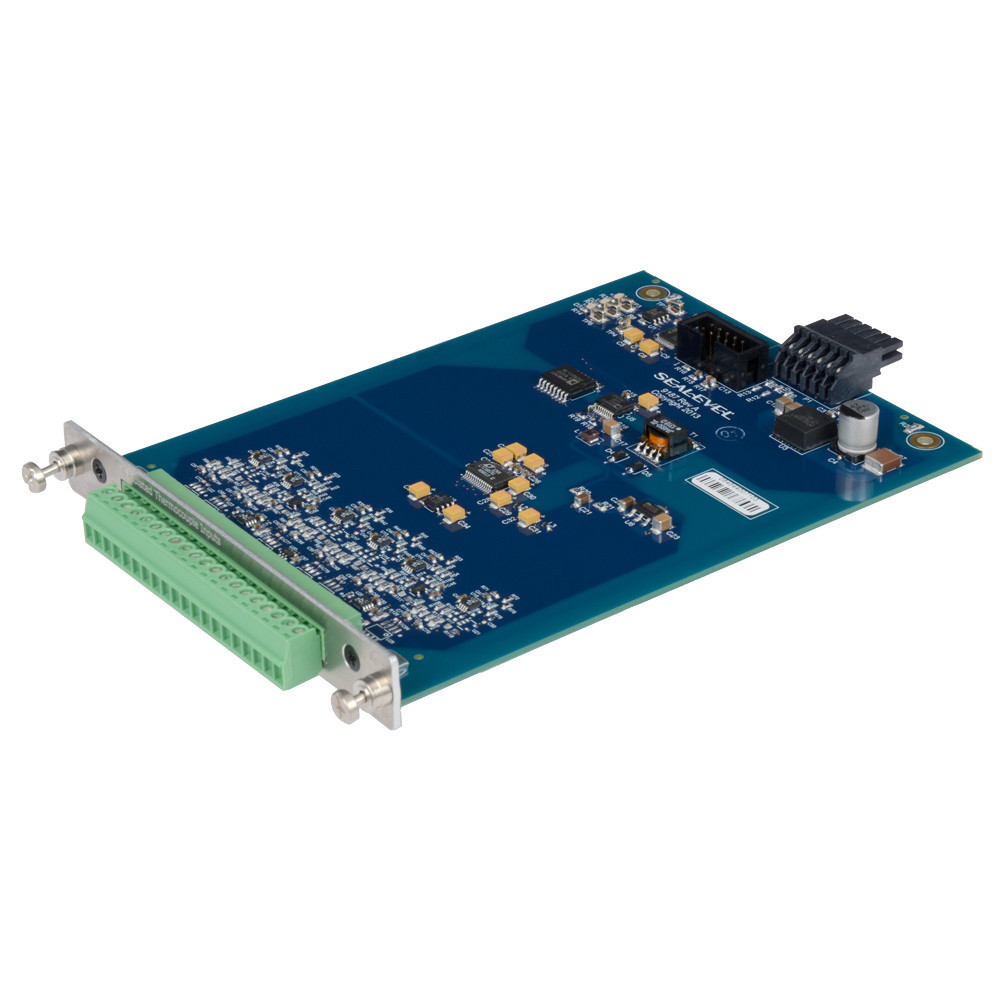

SeaRAQ 6 Isolated Thermocouple Inputs (Type E, J or K)

Call for price

In Stock:

6512

Field wiring is simplified via removable 3.5mm terminal blocks compatible with 16-30 AWG wire
Industry standard Modbus RTU interface
1500 VAC field-to-logic isolation
Includes 20-position, removable, high-retention Phoenix terminal blocks
Compatible with type E, J, or K thermocouples
Sealevel SeaMAX software supports Microsoft Windows and Linux operating systems
Input power provided via backplane connector
Expansion module with six (6) isolated thermocouple inputs

Request a Quote

SeaRAQ 6 Isolated Thermocouple Inputs (Type E, J or K)

Call for price

Satisfaction Guaranteed • 30 Day MoneyBack

Shipping & Returns

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean lectus neque, commodo non ante tincidunt, vestibulum auctor enim. Nulla euismod porttitor maximus. Nunc non dolor tempor, fermentum sem a, fringilla tortor. Cras accumsan sit amet eros congue fringilla. Donec diam magna, dictum eget bibendum vitae, consectetur a mauris.

Product Details

SeaRAQ™ I/O expansion modules provide unprecedented expansion capabilities for Sealevel Relio R3 and Relio R4 industrial computers. The SeaRAQ 6512 analog expansion board is specifically designed to interface inexpensive thermocouples. To simplify temperature calibration in the field, cold junction compensation is provided on the board.

To protect the host computer from harmful voltage spikes commonly found in industrial environments, the 6512 provides 1500 VAC isolation. For easy, reliable field wiring, the board uses removable, high-retention terminal block connectors and is compatible with type E, J, and K thermocouples.

Sealevel’s SeaMAX software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. Communicate using industry-standard Modbus RTU protocol or use the Sealevel SeaMAX API software libraries from your application program.
