Product Details

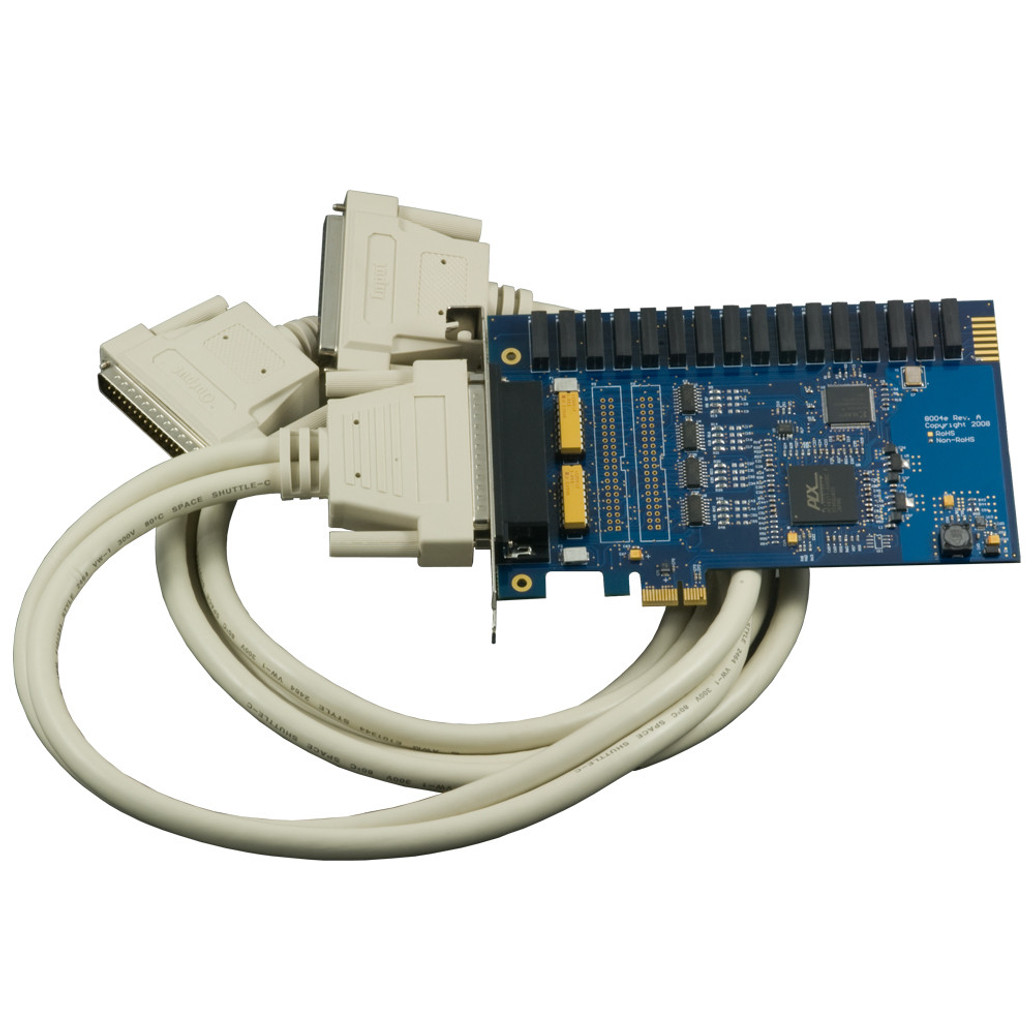

The 8004e PCI Express digital I/O interface provides 16 optically isolated inputs and 16 Reed relay outputs. The isolated inputs protect the PC and other sensitive equipment from the voltage spikes and ground loop currents that are common to industrial environments. The outputs provide high quality, long-life, dry contact switch closures suitable for low-current applications. Reed relays are normally open and close when energized. The board is PCI Express X1 compliant and is compatible with any PCI Express slot.
The inputs on the 8004e are rated for 3-13V. For 10-30V inputs, order the 8004He.
Sealevel SeaIO Classic software drivers and utilities make installation and operation of the 8004e easy using Microsoft Windows operating systems.
Get a jumpstart on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
Host Interface(s)
PCI Express
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-50°C to 105°C (-58°F to 221°F)
Humidity Range
10-90% Relative Humidity/Non-Condensing
Works great as described We are using this card in a broadcast environment to receive GPI from our automation system to trigger video playout. We moved to this card from a 8012 because we a needed PCIe card. Has worked great and customer service was very tolerant of our immediate needs.
