ISO-16.PCIe: PCI Express 16 Isolated Inputs (10-30V)
Call for Pricing
8006HE-ROHS
Call for price
8006E-ROHS
Product Details
THIS PRODUCT IS OBSOLETE DUE TO LACK OF COMPONENT AVAILABILITY. THE 8006ec IS THE CURRENT VERSION. PLEASE CONTACT YOUR SALES REPRESENTATIVE FOR FURTHER INFORMATION AND OTHER PRODUCT ALTERNATIVES.

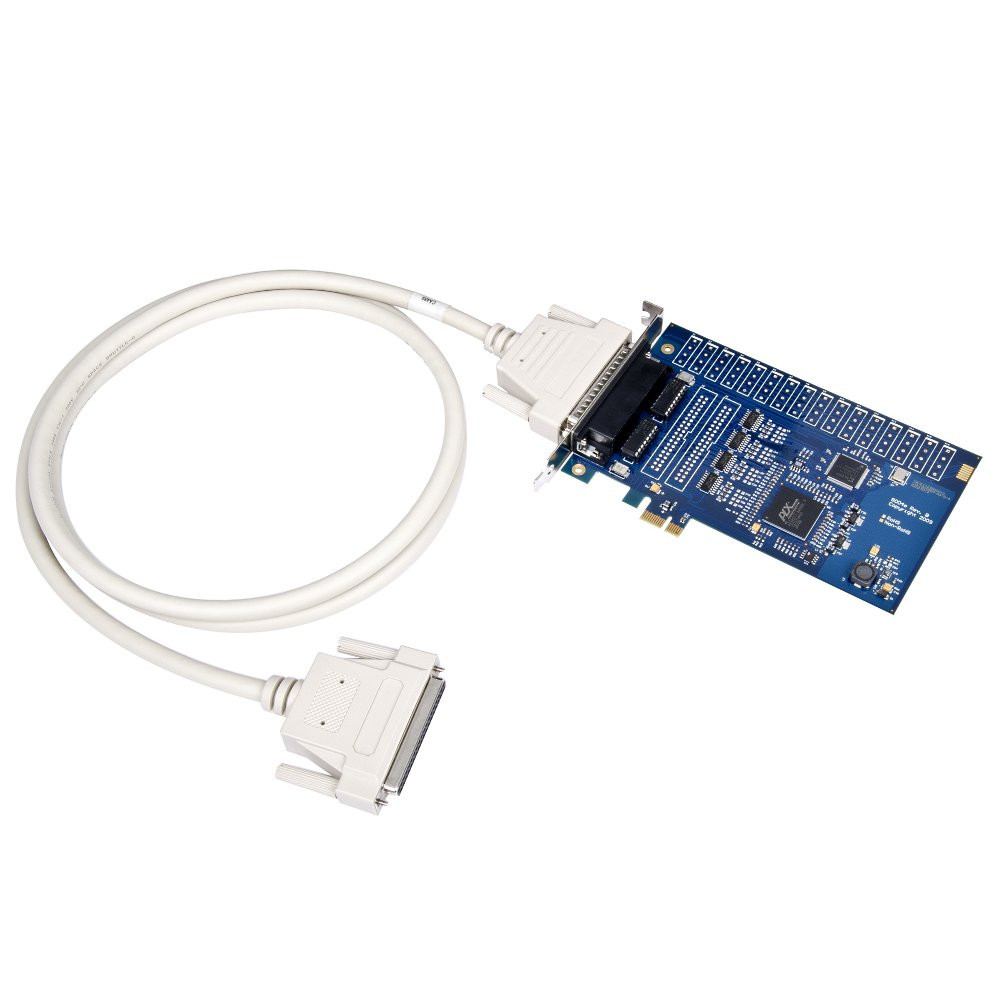

The 8006e PCI Express digital I/O interface provides 16 optically isolated inputs for connection to devices including sensors, switches, pushbuttons, and other user inputs. The inputs can sense both AC and DC voltage while providing optical isolation, which eliminates spikes and surges present in industrial environments. The board is PCI Express X1 compliant and is compatible with any low profile PCI Express slot. A standard profile bracket is also included.
The inputs on the 8006e are rated for 3-13V. For 10-30V inputs, order the 8006He.
Sealevel SeaIO Classic software drivers and utilities make installation and operation of the 8006e easy using Microsoft Windows operating systems.
Get a jump start on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
Host Interface(s)
PCI Express
Operating Temperature
0°C to 70°C (32°F to 158°F)
# of Ports
16
Storage Temperature
-50°C to 105°C (-58°F to 221°F)
Humidity Range
10-90% Relative Humidity/Non-Condensing
