Low profile/PCI bus;8 input/8 output; range 10V to 30V

Call for price

In Stock:

8012H-ROHS

Request a Quote

Low profile/PCI bus;8 input/8 output; range 10V to 30V

Call for price

Satisfaction Guaranteed • 30 Day MoneyBack

Software & Documentation

Sealevel-8012H-SL9557-G22-2 8012H-User-Manual-2

Shipping & Returns

100% Customer Satisfaction

If you are not completely satisfied with your Sealevel purchase you may return your products for a full refund, exchange, or credit within 30 days of the original purchase (RMA number required). Read full shipping and return policy here.

Product Details

This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.

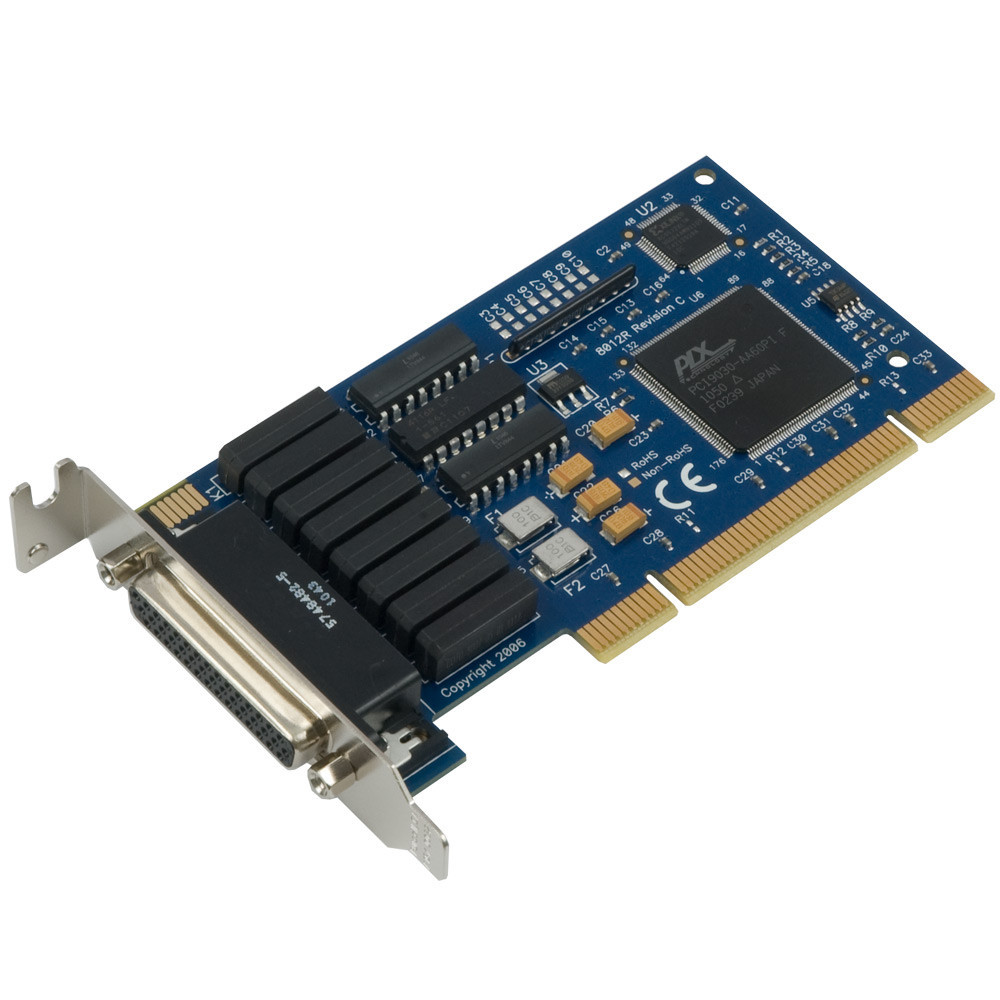

Optimized for sensing 24V inputs, the 8012H Low Profile PCI digital interface provides eight Reed relay outputs (SPST) and eight optically isolated inputs supporting 10-30V. Reed relays are well suited for low current applications. The relays are normally open, and close when energized. The board is MD1 Low Profile and Universal Bus (3.3V and 5V) compatible.

The 8012H is for use in Low Profile PCI slots only. Order the 8012SH if you have a standard size PCI slot. The inputs on the 8012H are rated for 10-30V. For 3-13V inputs, order the 8012.

Sealevel’s SeaIO Classic software drivers and utilities make installation and operation easy using Microsoft Windows operating systems.

Get a jump start on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
